★ Dual-Lens 360° Safety Shield Patented Helmet Contour Architecture GoPro Mount Ecosystem Ready

ApexGuard DB5s Dual-View
Integrated 2K Front & Rear Helmet Dash Cam

Eliminates multi-device bulk and cantilever neck fatigue. Engineered for South African endurance pelotons, motorcycle commuters, and gravel adventure riders, pairing a 2K SONY STARVIS™ IMX307 HDR front sensor with a patented curved rear lens that hugs helmet contours with zero awkward bracket overhang.

2K + FHD
Simultaneous Dual Recording
Front 2K QHD + Rear 1080p
Up to 6 Hrs
High-Durability Cell
5H Dual / 6H Single Lens
IP65 Ingress
All-Weather Enclosure
Rain, Dust & Dirt Resistant
Review Commercial & Wholesale Terms Optical Specs & App Controls

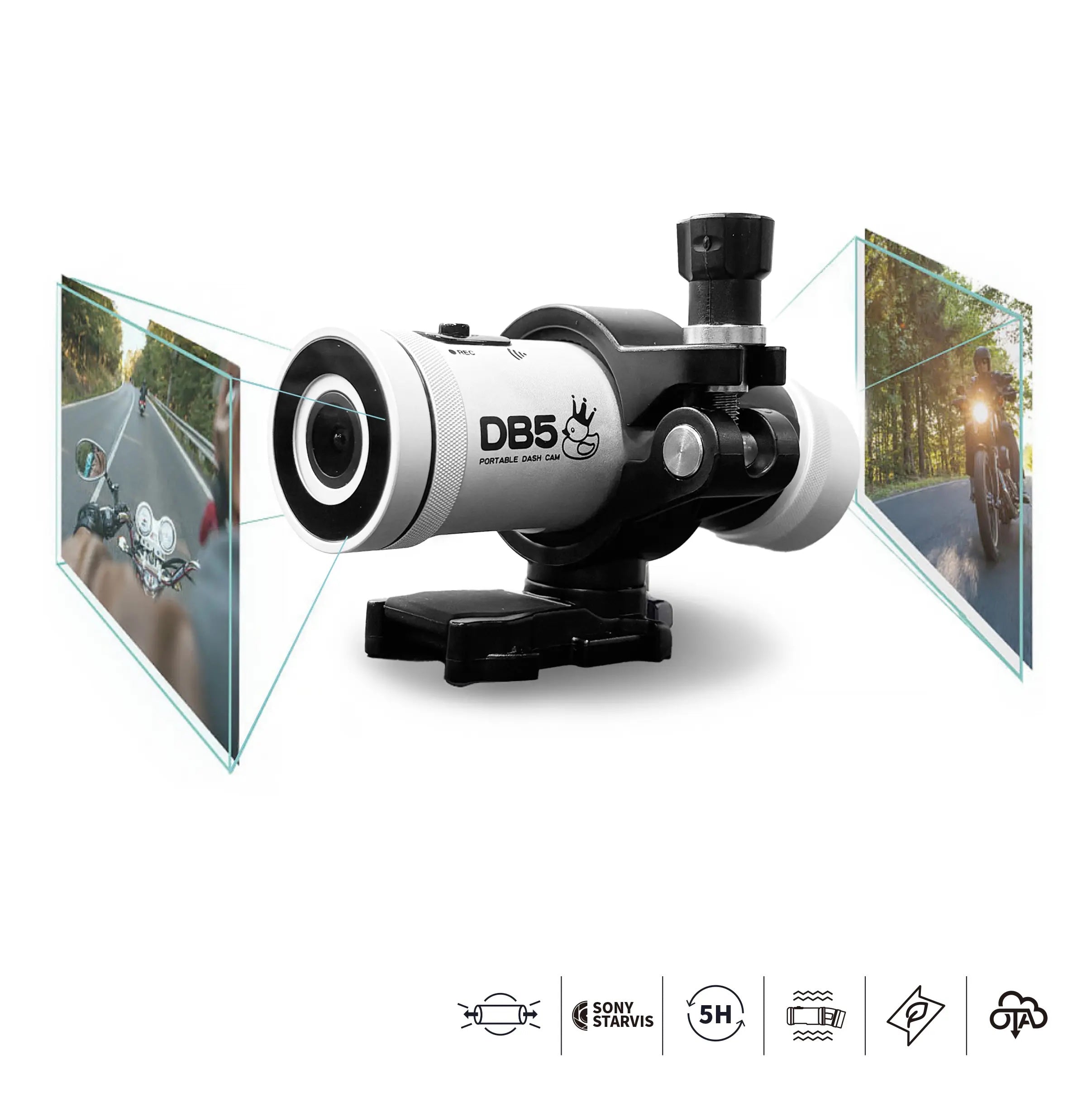

ApexGuard DB5s Dual-Lens Helmet Dash Cam System
Simultaneous Front & Rear FOV Featherweight Form Factor
Patented Industrial Design

Anatomically Curved Helmet Profile & SONY Optics

Conventional dual-lens setups require clunky brackets that stick out dangerously or unbalance the helmet. The DB5s uses a patented downward-curved rear assembly that sits flush with the shell's natural taper.

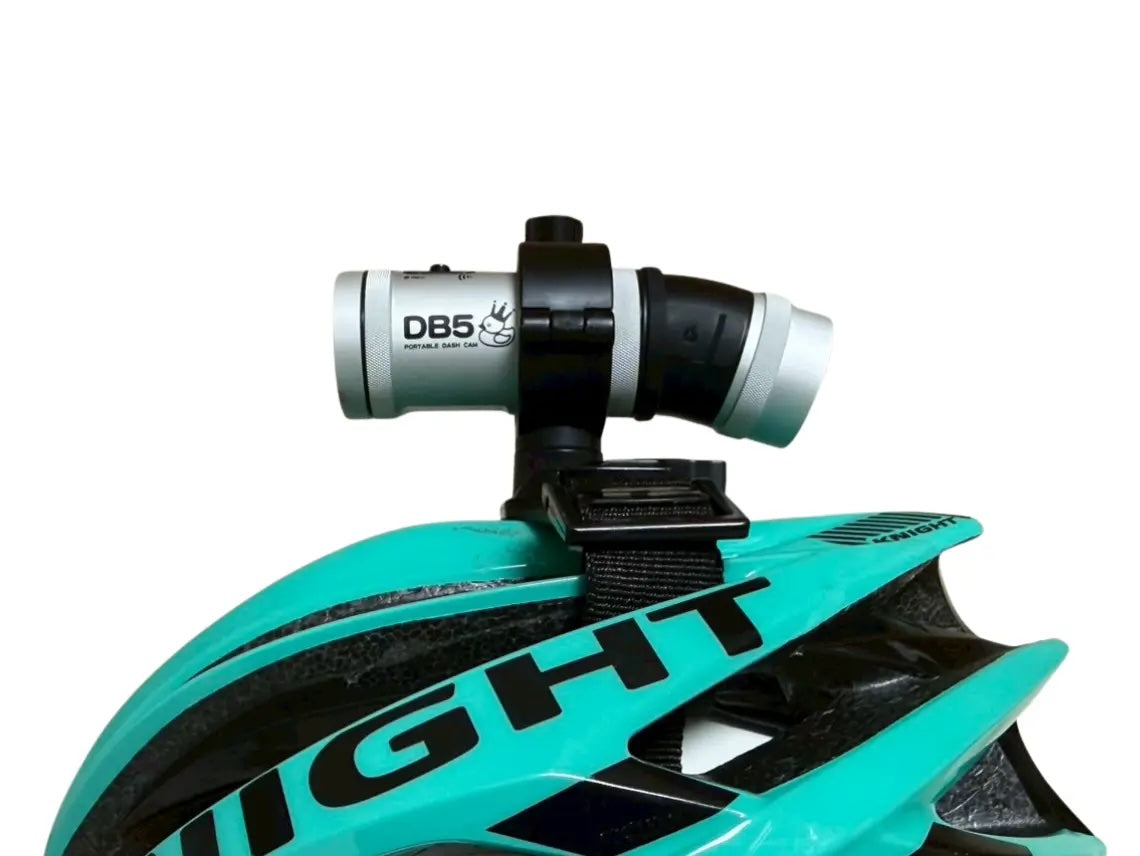

Patented Curved Rear Lens on Cycling Helmet

Patented Curved Rear Optical Chamber

Specifically angled to follow helmet curvature. Keeps the rear camera tucking tightly behind the rider's cranium, maintaining an unobstructed line of sight behind while eliminating high-speed aerodynamic drag and helmet buffet.

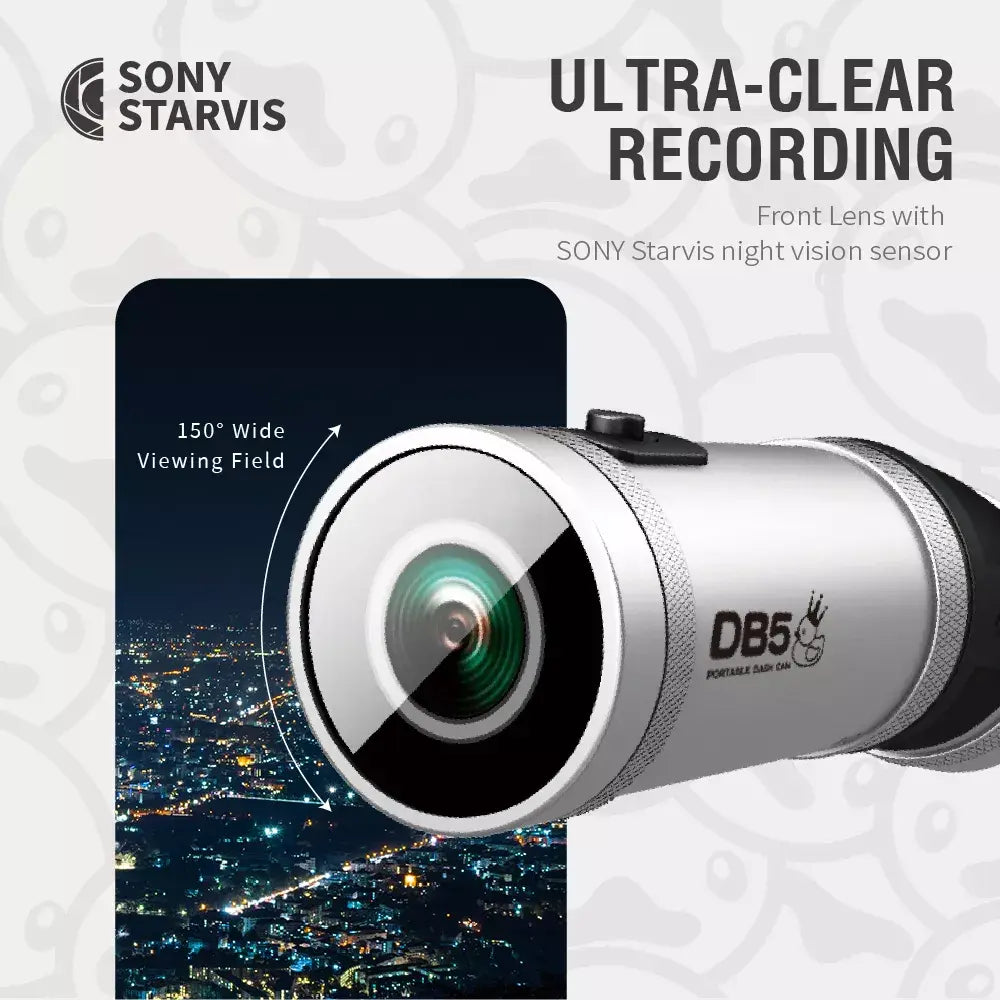

SONY STARVIS 2K Front Lens & 150 Degree Wide Angle

SONY STARVIS™ IMX307 Low-Light Sensor

Captures razor-sharp 2K QHD front video with authentic hardware HDR. Its 150° ultra-wide field of view sweeps across multiple traffic lanes, cycle paths, and road verges to register vital road incidents and license plates.

Exclusive Industry-First Adjustable Exposure Value (EV) Calibration Anti-Glare Number Plate Readability

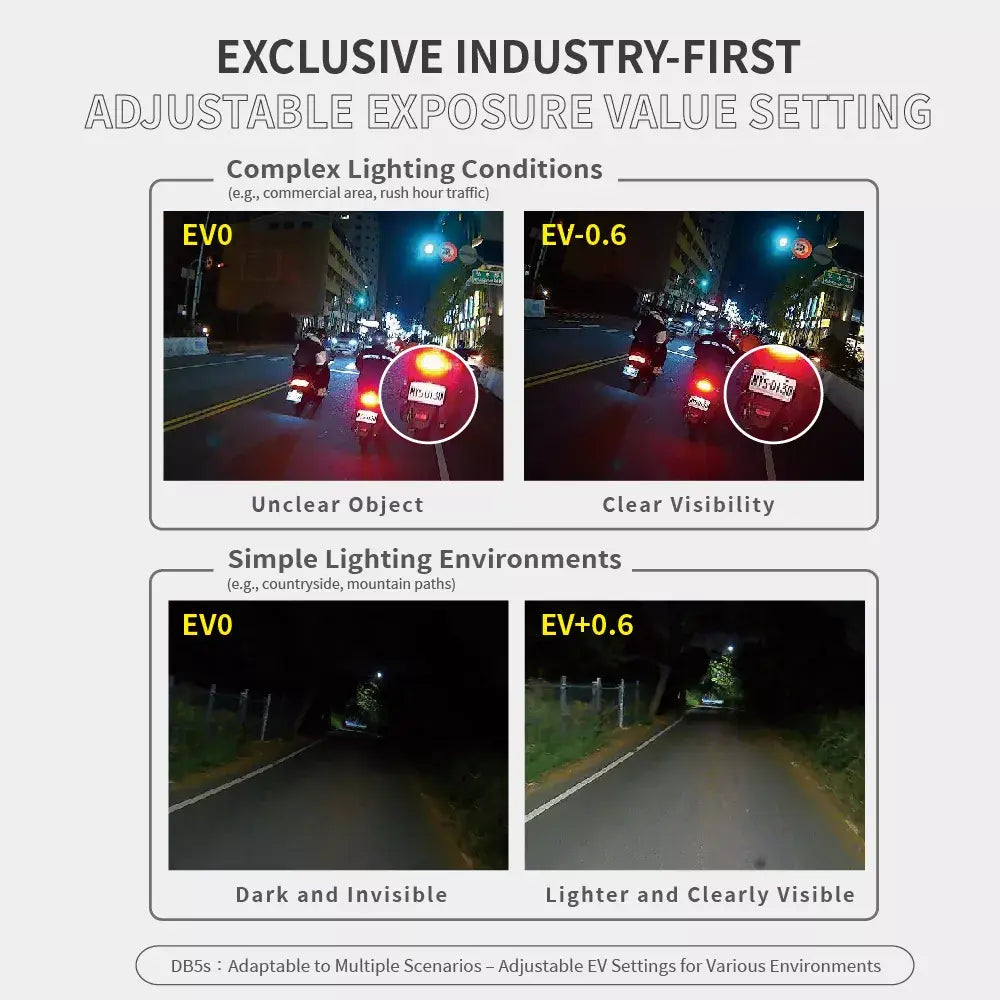

Adjustable Exposure Value EV-0.6 and EV+0.6 Demonstration
Overcoming Road Headlight Glare: On unlit provincial roads or busy metropolitan arterials, oncoming high beams and tail lights bleach out reflective vehicle registration numbers. By adjusting to EV -0.6 via the companion app, riders get crystal-clear plate recognition for insurance validation. On pitch-black unlit paths, adjusting to EV +0.6 illuminates dark roadside hazards.

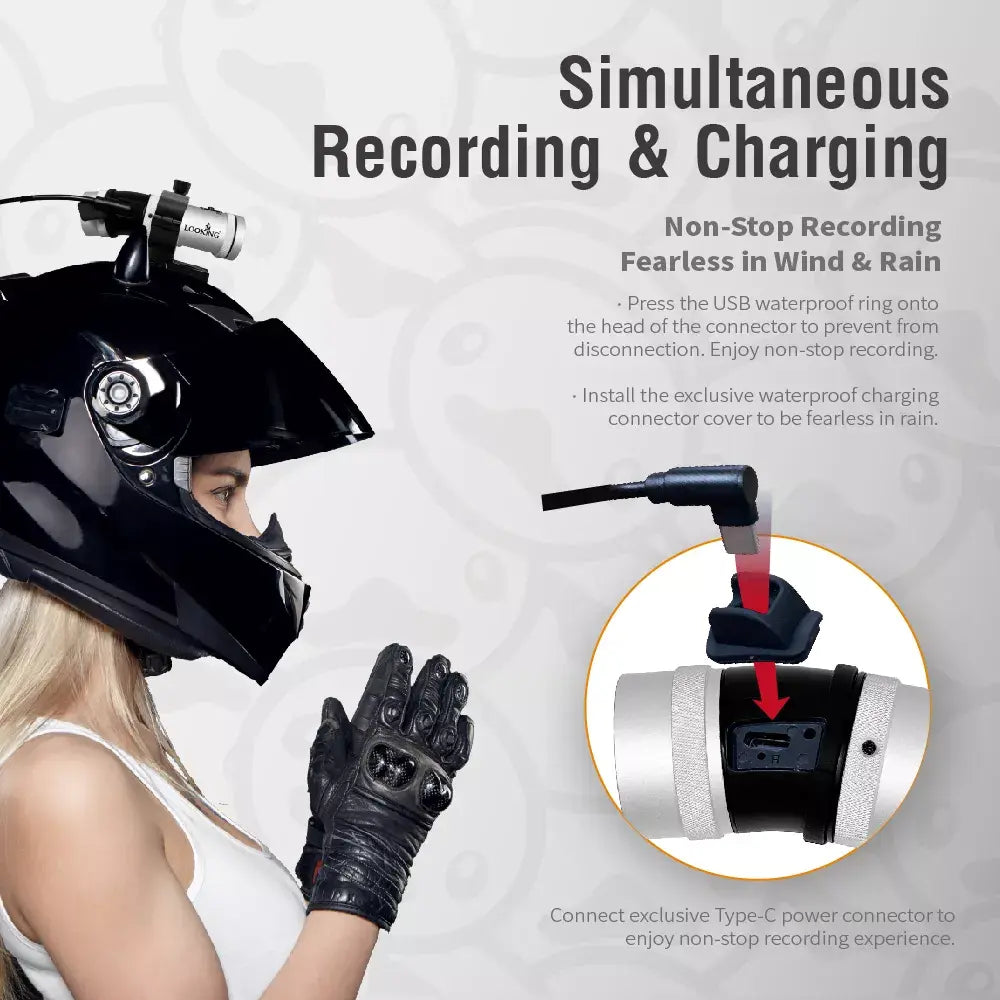

Simultaneous Recording and Charging with Waterproof Ring
CONTINUOUS ENDURANCE

Simultaneous Recording & All-Weather USB-C Charging

Built-in battery powers up to 5 hours of continuous dual-lens FHD recording. For ultra-endurance rides, bikepacking, or commercial courier shifts, connect an external power bank via the exclusive waterproof locking collar to record indefinitely in heavy wind and driving rain.

  • ✓ Sealed Connector Ring: Prevents physical vibration disconnects on rough corrugated trails.
  • ✓ IP65 Ingress Gasket: Weatherproof rubber seal protects the high-speed Type-C port from moisture and grit.
Engineering Precision

Exterior Architecture & Intelligent Guardian Firmware

Tactile 4-LED system feedback, automated motion-sensing sleep/wake cycles, and crash-proof streaming file systems.

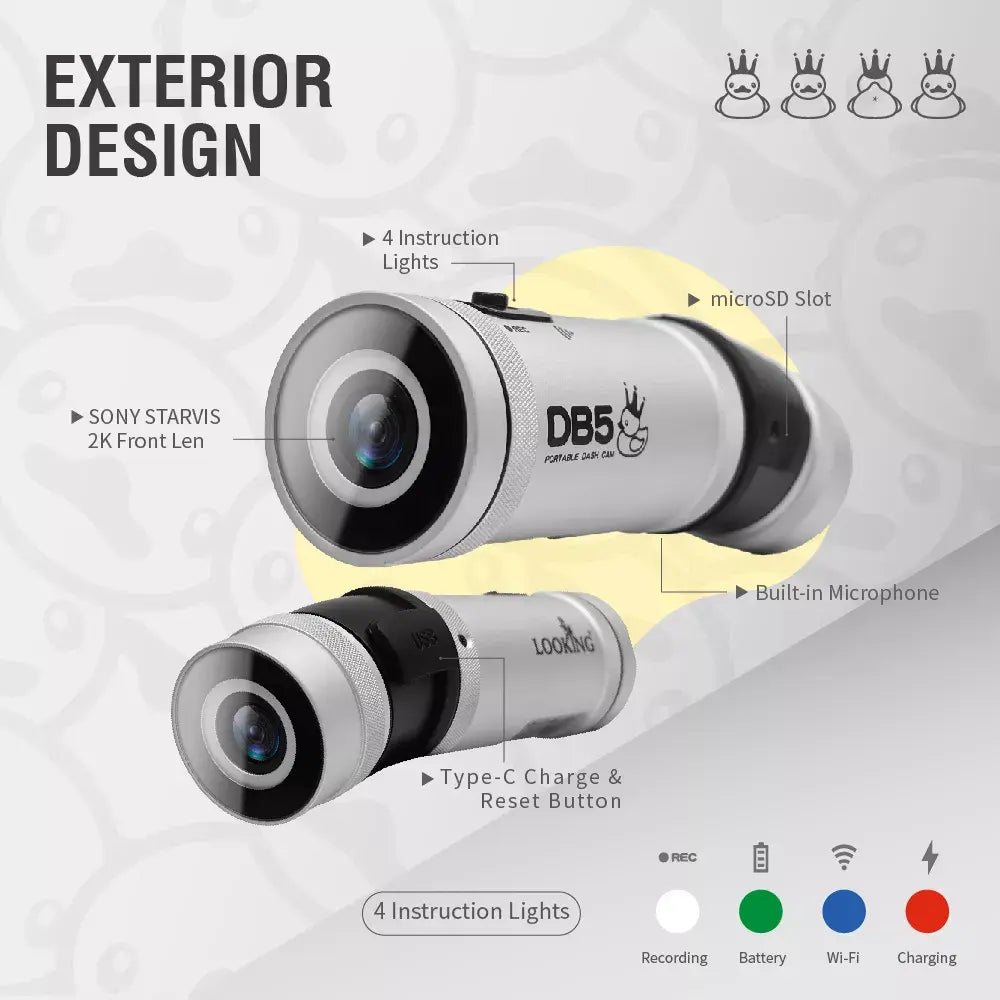

Exterior Design & 4 Instruction Lights Breakdown

Tactile Interface & 4-State Diagnostic LEDs

Equipped with 4 quick-glance status LEDs (Recording, Battery, Wi-Fi, and Charging), sensitive built-in audio microphone, sealed MicroSD card slot (supports up to 128GB), and textured tactile power toggle designed for gloved hands.

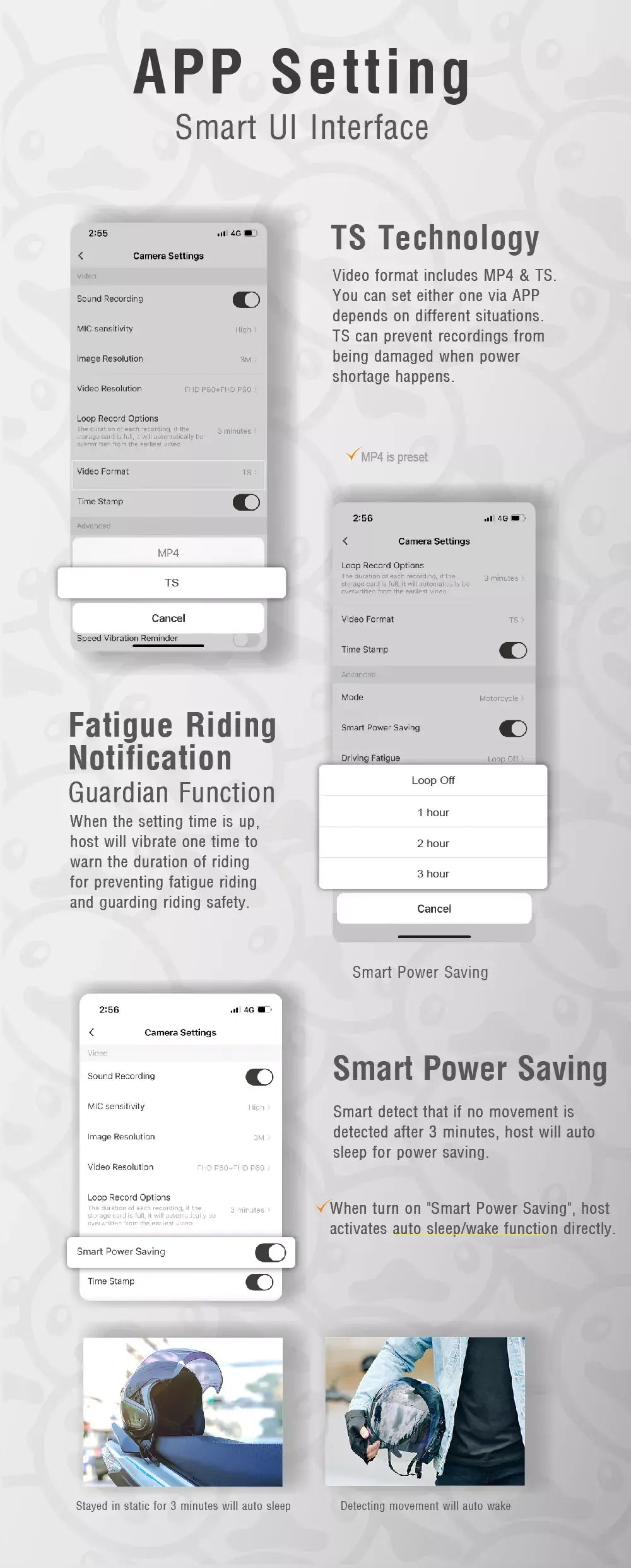

App UI, TS Stream Writing and Fatigue Vibration Reminder

TS Stream Writing & Fatigue Vibration

Selectable TS format writes video second-by-second, preventing file loss if sudden battery cutoffs or impacts happen. Features a built-in vibration motor that alerts riders at 1h, 2h, or 3h intervals to prevent riding fatigue.

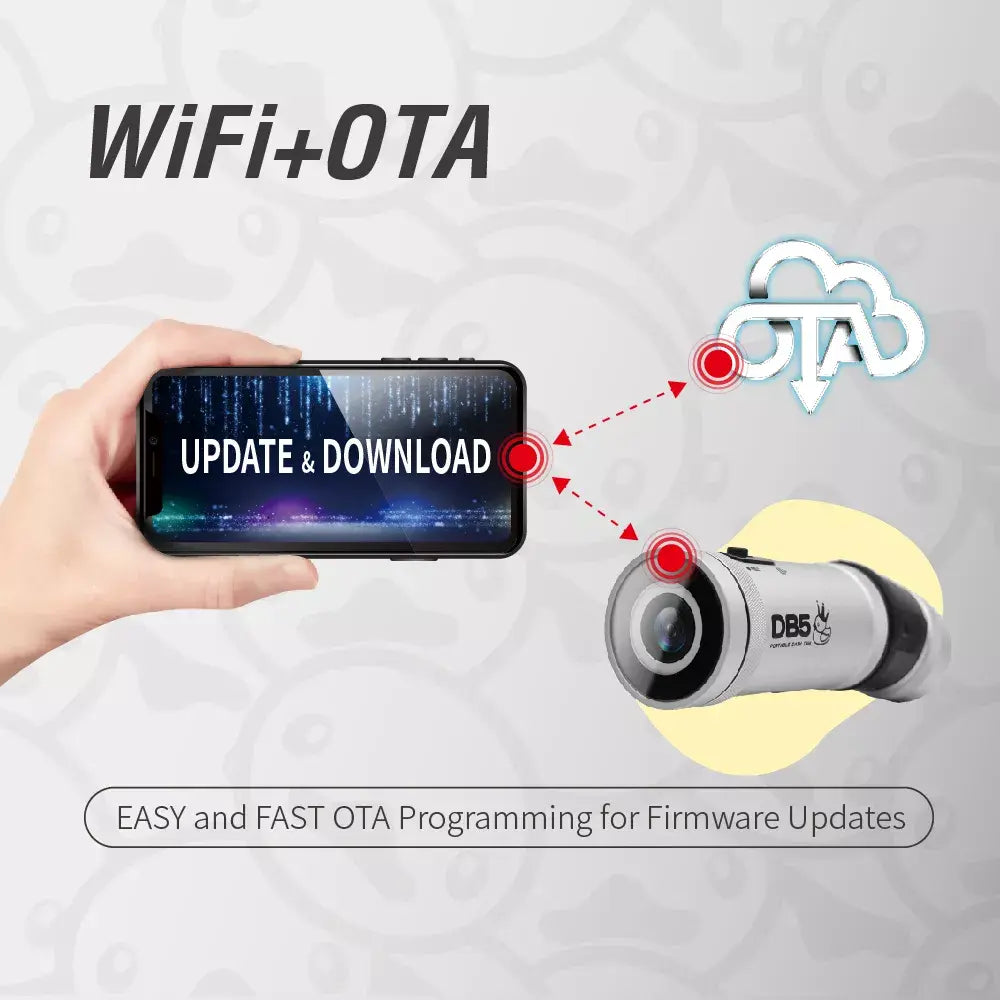

Easy and Fast OTA Programming for Firmware Updates
ZERO CABLE MAINTENANCE

Direct Wi-Fi App & Cloud OTA Updates

Riders download incident clips roadside directly to their smartphones over peer-to-peer Wi-Fi (zero cellular data used). Firmware upgrades, sensor tuning, and feature improvements are installed with a single tap via Over-The-Air (OTA) cloud sync.

Download on iOS App Store
Get it on Google Play
System Performance & Hardware Highlights Matrix 10-in-1 Feature Architecture

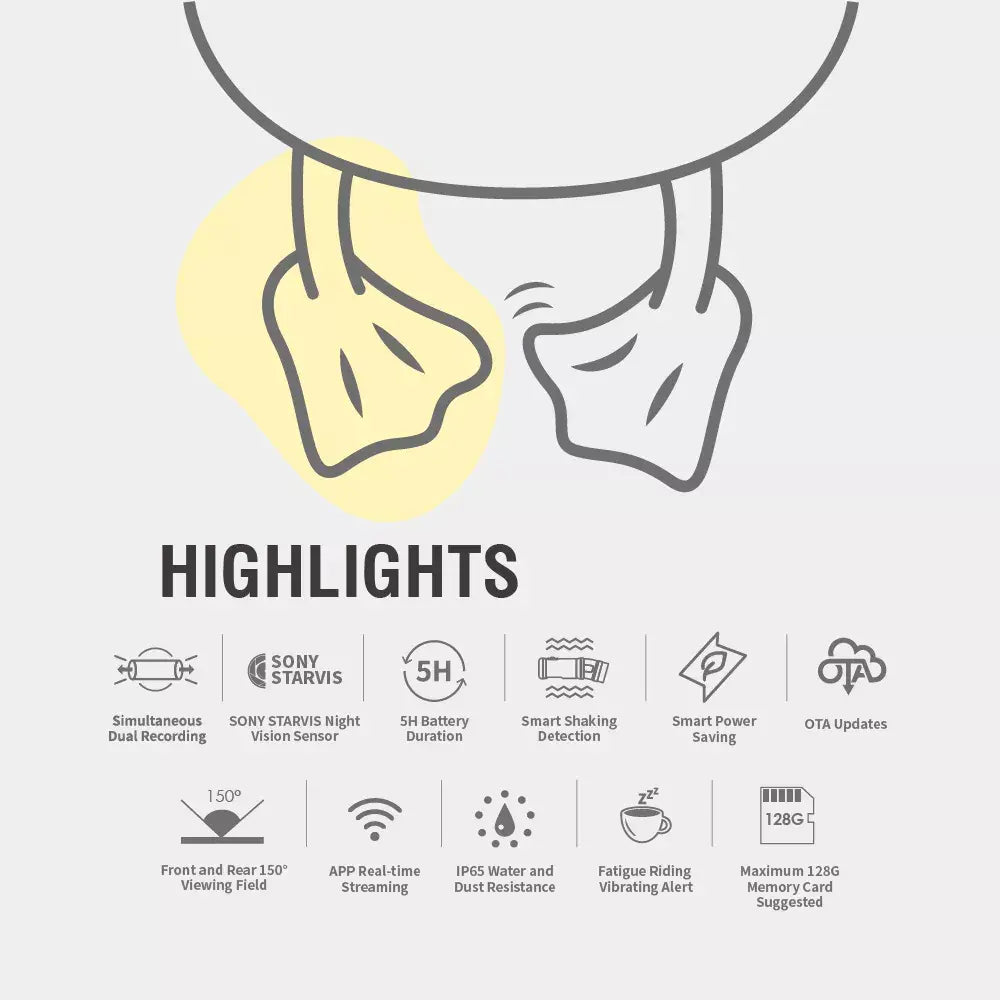

ApexGuard DB5s Comprehensive Hardware Highlights
Smart Motion Wake: Shaking/movement detection awakens recording in ~8s. Automatically sleeps after 3 minutes static.
Dual 150° FOV: Front and rear optics combine for true panoramic peripheral recording.
Auto Card Formatting: Automatically initialises new high-speed MicroSD cards on initial boot.
Universal Deployment

Multi-Scenario Versatility & GoPro Ecosystem Mounts

Compatible with the global standard GoPro three-prong interface. Moves effortlessly between road helmets, mountain bike full-faces, tactical vests, and sports gear.

Multi-Scenario Use: Bicycle, Motorcycle, Dirt Bike, Outdoor Trekking
Hardware Engineering Matrix

Technical Validation & Commercial Terms

Automotive-grade durability standards adapted for cycling and powersports. Verified for immediate retail onboarding across South African national retail channels.

ApexGuard DB5s Pro Complete Technical Engineering Parameters
Camera Architecture Simultaneous Front & Rear Dual-Lens Recording System
Front Optical Sensor SONY STARVIS™ IMX307 High-Sensitivity Low-Light Sensor with Hardware HDR
Front / Rear Resolution Front: 2K QHD (2560 × 1440p) / Rear: Full HD 1080p @ 30fps (or Dual FHD 1080p 30fps)
Rear Lens Construction Patented Anatomical Curved Housing (Optimized Helmet Contour Viewing Angle)
Lens Optics & Viewing Angle 150° Diagonal Wide-Angle FOV (Front & Rear) with Multi-Layer Anti-Glare Coating
Exposure Control (EV) Customizable EV Adjustment (+0.6 to -0.6) via Smartphone App for Night Glare Suppression
Container & File Format Crash-Safe TS Streaming (Second-by-Second Loss Prevention) / Standard MP4 Selectable
Battery Endurance Built-in Extended Cell: ~5 Hours (Dual 1080p) / ~6 Hours (Single Lens Front 2K)
Continuous Power Input USB Type-C with Proprietary Locking Waterproof Seal Ring for Rainproof Continuous Run
Sensors & Intelligent Logic Motion-Activated Auto Wake-up (~8s) • 3-Min Static Auto-Sleep • Fatigue Ride Vibration Alert
Ingress Protection Certified IP65 Dustproof & Weatherproof (High Resistance to Wind, Rain & Dirt)
Mounting Standards GoPro Ecosystem Quick-Release Mount Compatible (Vented Bicycle & Motorcycle Helmet Brackets)
Storage Media MicroSD Card (Supports up to 128GB, Class 10 / U3 Required) with Auto-Format on Initial Insert
Wireless Connectivity Direct 2.4GHz Wi-Fi • Companion App (iOS & Android) • Zero-Cable One-Touch OTA Cloud Firmware
🇿🇦 MORECORP / CYCLE LAB COMMERCIAL FIT

High-Velocity Safety Hardware for Road, Gravel & Commuter

Provides complete 360° front-and-rear forensic peace of mind in a single lightweight unit. Riders avoid the complexity of buying separate front and rear units, and retail staff can easily demo the patented helmet contour and instant Wi-Fi phone playback.

  • ✓ Private-Label / OEM Customization: Custom laser logo etching, packaging re-skinning, and branded mobile app splash screens available.
  • ✓ Regulatory Compliance: Pre-cleared CE, FCC, RoHS certifications; directly compliant with ICASA radio equipment standards.
  • ✓ Turnkey In-Box Mounting: Universal GoPro quick-release base, curved 3M adhesive mount, and vented bicycle helmet strap included.
● Evaluation units pre-configured for executive inspection in Johannesburg / Cape Town.
Proposed Commercial Terms EXECUTIVE PILOT SCHEDULE
Wholesale Cost to Morecorp R2,450.00 ZAR (Ex. VAT)
Target Retail MSRP (In-Store) R4,299.00 ZAR (Incl. 15% VAT)
Retail Net Price (Ex. VAT) R3,738.26 ZAR
Gross Profit / Unit R1,288.26 ZAR
Retail Margin (GPM) 34.5% Gross Margin
Retail Markup on Cost 52.6% Markup
*Selling just 5 units/month across Cycle Lab mega-stores delivers R6,440+ gross profit per retail footprint.
