Dimensions & Weight

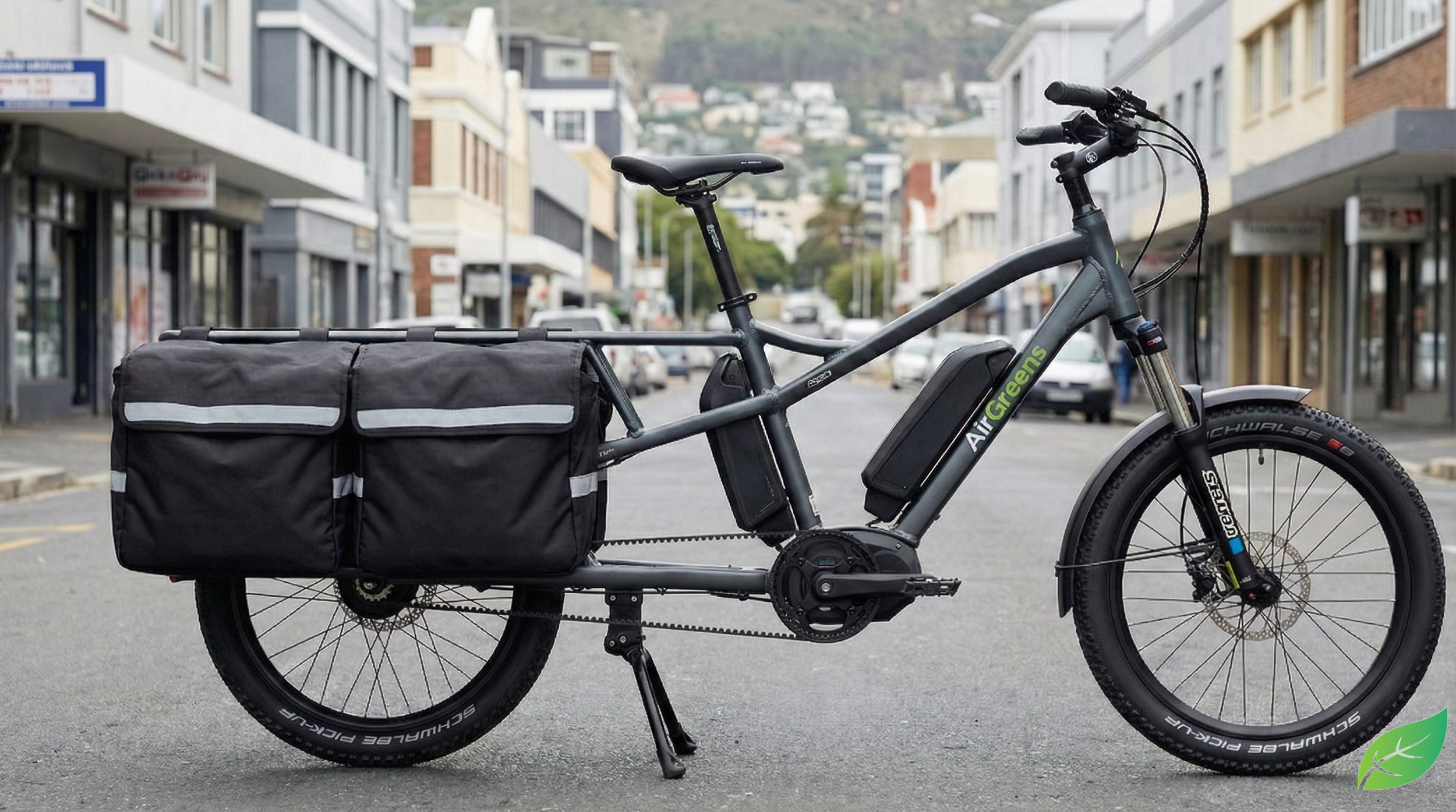

• Bike Type: Longtail Electric Cargo Bike

• Total Length: 180+ cm

• Bike Weight: Approx. 34~ 37kg (Depends on drivetrain)

• Wheelbase: 123 cm – 125 cm

Load Capacity (Longtail Configuration)

• Maximum Gross Vehicle Weight (MGVW): 200 kg (Gen 2) / 210 kg (Gen 3)

• Max Rider Weight: 120 kg

• Rear Rack Load Capacity: 100 kg

Frame & Fork

• Frame Material: 6061-Aluminum

• Fork: Suntour tapered Chromoly steerer, Thru-axle, 70 mm travel

• Handlepost: forged, folding

• Stem: Ttool-free adjustment for reach/height

• Seatpost: accommodates wide rider height range

• Rider Height Fit: 150 cm – 195 cm (4'11" – 6'5")

E-System (Motor & Battery)

• Motor: Bosch Cargo Line (Gen 4)

• Torque: 85 Nm

• Assist Level: Up to 400% support

• Top Speed: 25 kph (EU)

• Battery Configuration: Dual-battery capable

• Typical Battery Capacity: 400Wh, 500Wh, or up to 1000Wh (combined)

Drivetrain options

• Shimano Deore 1x10-speed derailleur

• Or 10 speed Internal Gear Hub with Belt Drive

Brakes & Wheels

• Braking System: 4-piston hydraulic disc brakes

• Rotors: 180 mm front and rear

• Brake Features: RearStop brake light (activates when braking)

• Wheel Size: 20-inch (Front and Rear)

• Rims: ultra-wide, double-reinforced joints

• Hubs: Boost Thru-Axle

• Tires: Heavy-duty cargo rating

Included Accessories

• Kickstand: Locking double-leg stand.

• Wheel Lock: Integrated frame lock (keyed alike to battery)

• Fenders: Heavy-duty aluminum fenders with integrated rear wheel skirt/guard

• Lighting: Integrated LED front and rear lights (powered by main battery)
