Dimensions & Weight

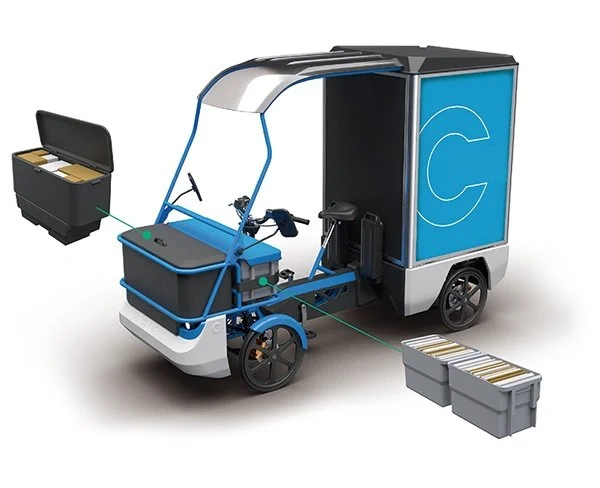

• Vehicle Type: 4-Wheeled Industrial E-Cargo Quadricycle (EPAC)

• Total Length: 258 cm (2580 mm)

• Total Width: 103.2 cm (1032 mm)

• Driver Cabin: Ergonomic upright seating designed for prolonged shifts

• Steering Mechanism: Automotive-style direct steering linkage for high-stability cornering

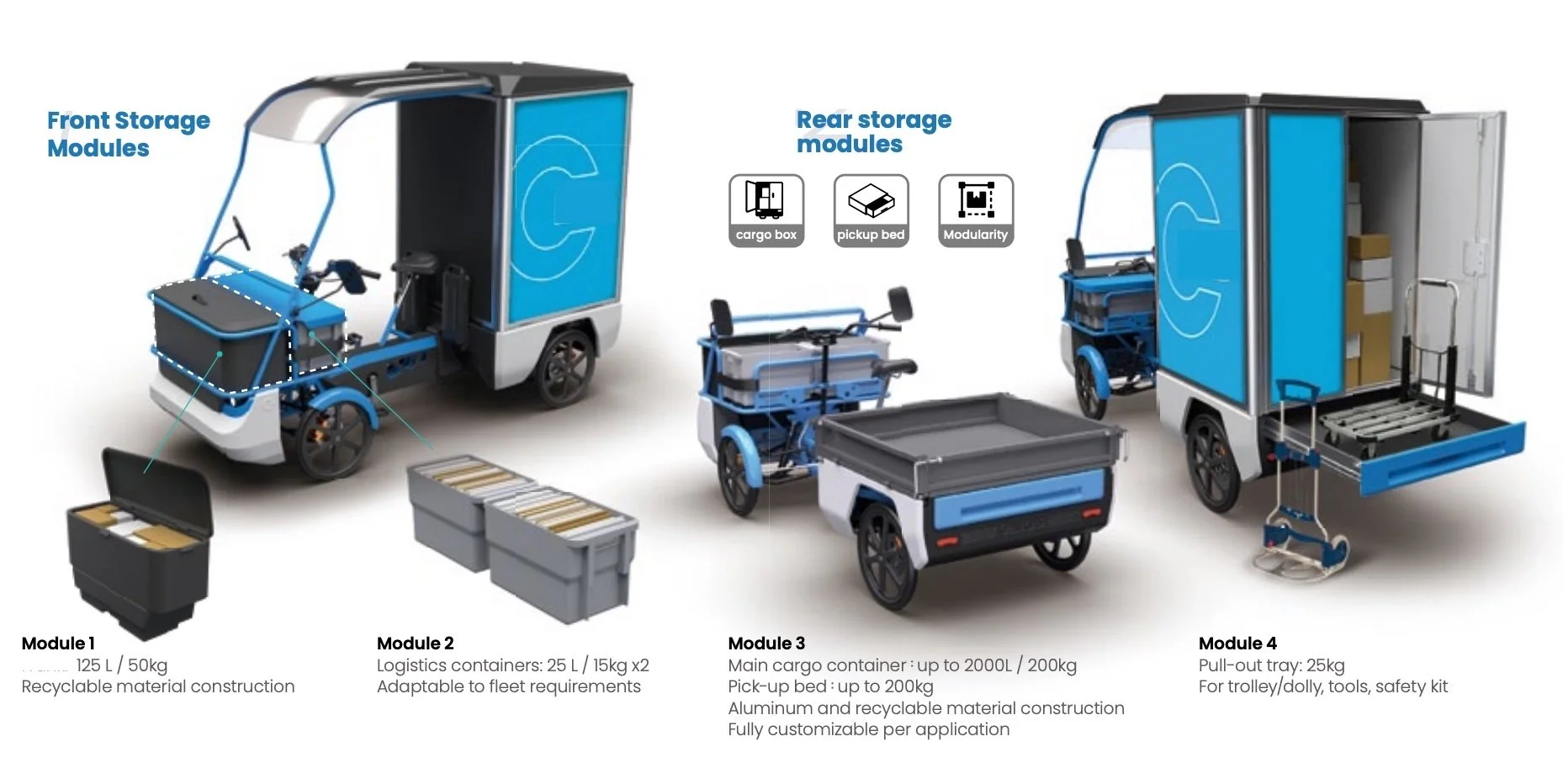

Load Capacity & Cargo Platform

• Cargo Box Volume: 1,000 Liters (1.0 Cubic Meter)

• Max Cargo Payload: 200 kg (Excluding Rider)

• Cargo Box Modularity: Extruded aluminum T-slots for adjustable shelving, heavy-duty sliding trays, and storage nets

• Access Options: Customizable 3-sided access (rollup doors, folding doors, or barn doors)

• Cold Chain Ready: Optional food-grade PE construction with ultra-thick PU foam insulation and active cooling units

Frame, Suspension & Weather Protection

• Chassis: Industrial-grade heavy-duty 4-wheel frame

• Suspension Type: Advanced independent suspension system (Anti-tip technology for wet/uneven corners)

• Weather Protection: Fully integrated hard-roof canopy

• Windshield: Safety glass with integrated electronic wipers for all-weather visibility

E-System (Motor & Smart Battery)

• Motor: Industrial Mid-Drive System

• Power: 250W Continuous (EPAC Legally Compliant)

• Torque: 100 Nm (High-torque for heavy 200kg payloads)

• Top Speed: 25 km/h (Electronically limited)

• Range: Up to 120 km per day

• Smart Telemetry: Live battery health and charge-level monitoring via Fleet Management Dashboard

Brakes & Wheels

• Braking System: Automotive-grade, heavy-duty hydraulic disc brakes on all 4 wheels

• Stability: 4-wheel footprint eliminates the tipping risk associated with 2-wheel scooters

• Wheels: Heavy-duty reinforced cargo rims designed to carry bulk weight without spoke failure

Smart Features & Fleet Management (IoT)

• GPS Tracking: Live real-time routing and vehicle location tracking

• Anti-Theft: Remote power cut-off capability for unauthorized movement

• Access Control: Keyless entry via Bluetooth, RFID, or Mechanical Smart Locks

• Rider Analytics: Dashboard tracking for speed, harsh braking, and route efficiency

• Automated Maintenance: Predictive service alerts based on live vehicle data usag
